E-117 TRI DISC 105 BIKE SPECIFICATIONS
- Aero basebar Profile Design Wing Alu
- Bar End Shifters Shimano Dura Ace SL-BSR1
- Bar Tape Prologo Plaintouch Black
- Brake Levers Tektro TL720
- Cassette Shimano 105 R7000, 11-28
- Chain Shimano HG601
- Pedals Not Included
- Tires Vittoria Zaffiro Pro, 700x25c
- Wheel - Front Vision Team 25
- Wheel - Rear Vision Team 25
- frame Material Monocoque Carbon
- Fork Argon 18 Carbon
- Headset FSA 37E +3D 1" 1/4
- Seatpost Argon 18 ASP-7050 Carbon
- Front Derailleur Shimano 105 R7000
- Rear Derailleur Shimano 105 R7000
- Crankset Shimano RS510, 52/36
- Bottom Bracket BB86
- Brake Calipers TRP TKB137-2 TKB138-3
- Stem FSA OS-168 Alloy
- Aero Clip-On Bar Profile Design Sonic
- Saddle ISM PR1.0
E-117 TRI DISC 105 BIKE GEOMETRY / SIZE CHART
| Size | Seat Tube (c-c) | Seat Tube (c-t) | Top Tube Length | Head Tube Length | Chain Stay Length | Seat Tube Angle | Head Tube Angle | Stand Over Height | Wheel Size | Stack | Reach |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XL | - | 573 | 545 | 166 | 413 | 78.0 | 72.0 | 831 | 700c | 568 | 422 |
| L | - | 546 | 527 | 139 | 413 | 78.0 | 72.0 | 805 | 700c | 543 | 409 |
| XS | - | 461 | 492 | 84 | 413 | 78.0 | 72.0 | 730 | 700c | 491 | 385 |
| M | - | 516 | 517 | 111 | 413 | 78.0 | 72.0 | 777 | 700c | 516 | 405 |
| S | - | 500 | 504 | 95 | 413 | 78 | 72 | 762 | 700c | 501 | 395 |
E-117 TRI DISC 105 BIKE INFORMATION

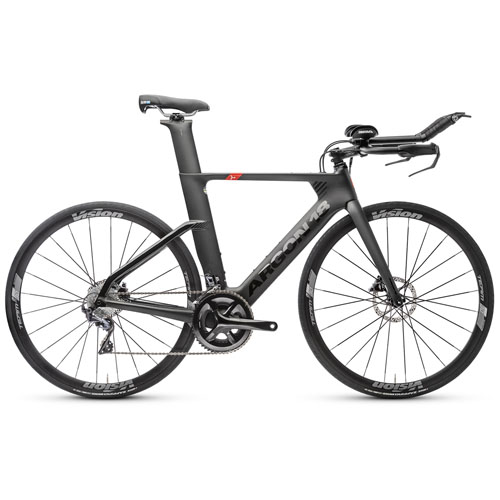

The Argon 18 E-117 Tri Disc is a high-performing triathlon bike for a great price for the athlete looking to take a chunk out of their triathlon time. This bike is designed to meet the needs of a wide range of triathletes from young to old, from novice to experienced rider. The E-117 makes a perfect entry-level or mid-range triathlon bike and is versatile enough to be used in more than a triathlon. The Argon 18 E-117 Tri is UCI approved so it can make a solid time trial machine as well. If you are ready to join the elite triathletes or take on a half-Ironman, the Argon 18 E-117 Tri Disc will help you reach your goals.
The optimal carbon frame of this bike keeps its weight very light for such an affordable tri bike. This will keep you moving easily if you come up against a bike leg with a climb. It also increases the E-117's time trial potential. With its light weight and aerodynamic nature, the Argon E-117 Disc is a very fast bike on the road. Its flat tube profiles and hidden brakes help it cut through the wind to give you the most efficient ride on flat ground. This version also utilizes disc brakes which add confident to hit high speeds with powerful and modulated stopping power.
Comfort is a huge must when it comes to triathlon bikes. After an exhausting swim, you need to be able to go fast while preserving enough energy for the run. This bike was built with a triathlon specific geometry that combines aerodynamics with a well-balanced ergonomic fit for frames of all sizes. The Press-Fit 3D system extends positioning flexibility, giving you the option to choose from three headtube sizes regardless of bike size. This system keeps the bike’s frontal rigidity, maintaining the speed you expect.
The Argon 18 E-117 Tri Disc 105 is a great choice for the rider who wants a balance of performance and value in an aero package. It is equipped with a Shimano 105 groupset for mechanical shifting at an excellent price. This bike has everything you would expect from a tri bike including aerodynamic speed as well as versatility and a low weight. You will be able to take your travel-friendly E-117 anywhere you go. There is no complicated hardware involved and the cockpit and wheels are easily removable with a few simple tools. The Argon 18 E-117 Tri makes high performance easy. With this bike, you can break into the elite and push your triathlon limits.
frame SPECIFICATIONS
- frame: Argon 18 E-117 Tri Disc Carbon
- Fork: Argon 18 E-117 Tri aero carbon disc fork
- Headset: FSA 37E + 3D 1” 1/4
- Seatpost: Argon 18 ASP-7050 Carbon
